Thermoflo
pressurizers control the water level within a sealed water system,
by automatically maintaining the initial system design pressure. |
|
|
 |
|
|
|
|
|
|
|

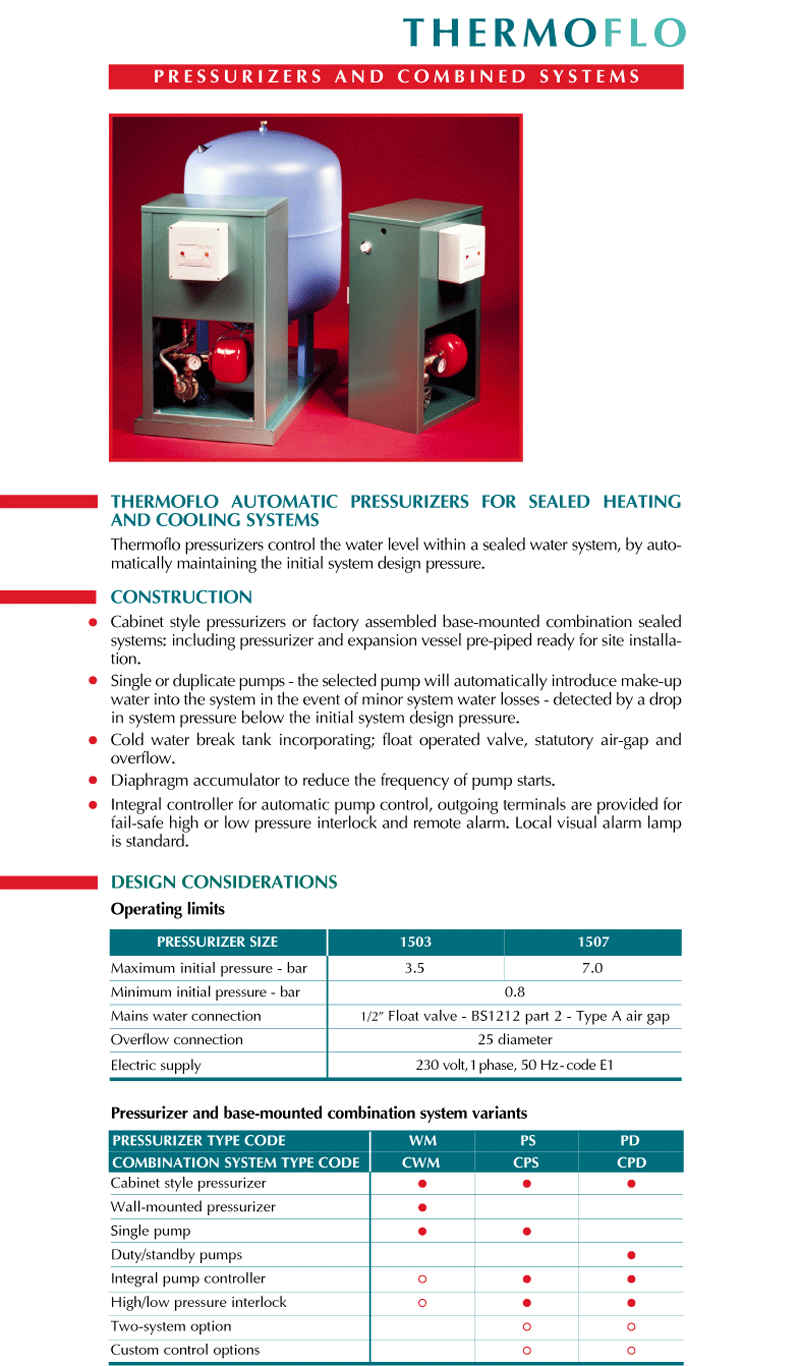

THERMOFLO AUTOMATIC PRESSURIZERS FOR SEALED HEATING AND COOLING
SYSTEMS
Cabinet style pressurizers, or factory assembled base-mounted
combination sealed systems including pressurizer and expansion
vessel pre-piped ready for site installation.
Single or duplicate pumps - the selected duty pump will automatically
introduce make-up water into the system in the event of minor
system water losses, detected by a drop in system pressure below
the initial system design pressure.
Cold water break tank incorporating - float operated valve,
overflow, pump suction filter and optional low water pump protection.
Diaphragm accumulator to reduce the frequency of pump starts.
Integral controller for automatic pump control, outgoing terminals
are provided for fail-safe high or low pressure interlock and
remote alarm. Local visual alarm indication is standard.
